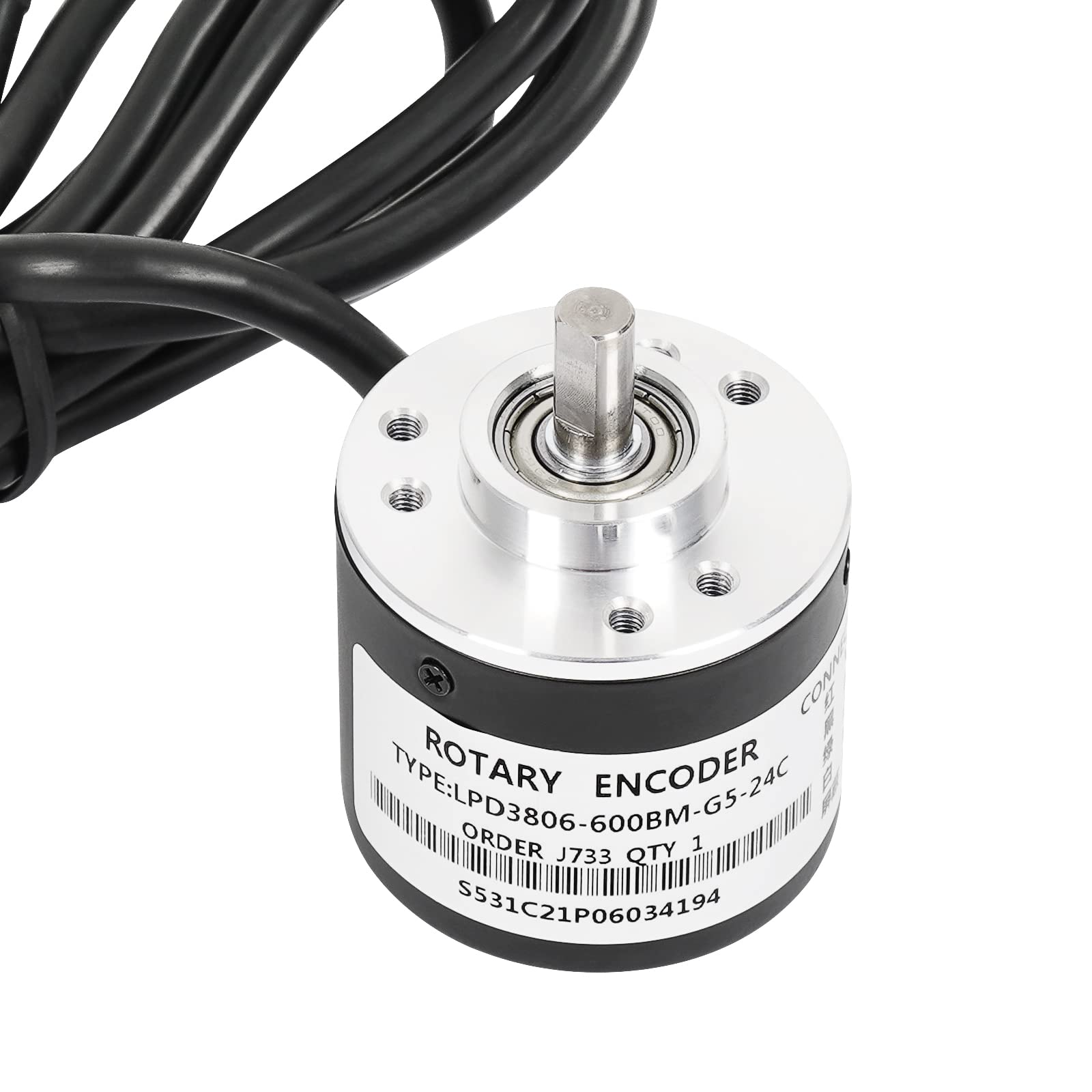

Signswise Incremental Optical Rotary Encoder for Arduino 360P/R Wide Voltage Power Supply DC 5-24V 6mm Shaft Quadrature

Signswise Incremental Optical Rotary Encoder for Arduino 360P/R Wide Voltage Power Supply DC 5-24V 6mm Shaft Quadrature

Q: Hi i buy one of this encoder, but, the colors of the wires are red, black, white and green. some idea about the connections?

Green is phase A and white is phase B you will need the red connected to positive voltage 5-24V and black to ground.Both phases will need to go to positive through a 2k pull up resistor. If you use arduino in my case Arduino Micro this is a sample code : #define outputA 5 #define outputB 6 void setup() { pinMode (outputA,INPUT); pinMode (outputB,INPUT); } void loop() { aLastState = digitalRead(outputA); aState = digitalRead(outputA); // Reads the "current" state of the outputA // If the previous and the current state of the outputA are different, that means a Pulse has occured if (aState != aLastState){ // If the outputB state is different to the outputA state, that means the encoder is rotating clockwise if (digitalRead(outputB) != aState) counter ++; else counter --; Serial.print("Position: "); Serial.pr

Q: Does anyone have a datasheet for this? I need to know the arrangement of the screw holes.

Draw an equilateral triangle with 24mm long sides. The points are the hole centers.

Q: is there a wire diagram for connection of the encoder to the ab 1400 plc?

The encoder has the following wire connections Red>+24VDC Black>Ground Green and White Phase A and B. You'll need to wire to specific inputs though. For example, if you use the first high-speed counter, you'll wire A and B channels to inputs 0 and 1 (A/ and B/ won't be used) with the signal low encoder wire going to COM0. Then you'll need to configure the HSC function file for a two-channel high-speed counter. The ML1400 Referenece Manual (1766-rm001) has all the details about using the high-speed counter. The user manual (1766-um001) has some additional (generic) information about wiring.

Q: What diameter do the threaded holes have?

Hello, it belongs to M3 aperture

Product ID: 398239262

Secure Transaction

📏6mm shaft size

🔌DC 5-24V power

⚙️360P/R pulses

Frequently Bought Together

Signswise Incremental Optical Rotary Encoder for Arduino 360P/R Wide Voltage Power Supply DC 5-24V 6mm Shaft Quadrature

Arduino Uno REV3 [A000066] – ATmega328P Microcontroller, 16MHz, 14 Digital I/O Pins, 6 Analog Inputs, 32KB Flash, USB Connectivity, Compatible with Arduino IDE for DIY Projects and Prototyping

EDGELEC 120pcs Breadboard Jumper Wires 10cm 15cm 20cm 30cm 40cm 50 cm 100cm Wire Length Optional Dupont Cable Assorted Kit Male to Female Male to Male Female to Female Multicolored Ribbon Cables

Description

🔄 Elevate Your Projects with Precision!

COMPACT DESIGN - Lightweight and small, making installation a breeze in any project.
VERSATILE VOLTAGE - Compatible with a wide voltage range of DC 5-24V for diverse applications.
MULTI APPLICATION USE - Perfect for robotics, automation, and more—your creativity is the limit!
PRECISION PERFORMANCE - Experience 360 pulses per revolution for unmatched accuracy.
COST EFFECTIVE SOLUTION - Achieve high performance without breaking the bank.

The Signswise Incremental Optical Rotary Encoder is a high-performance device designed for various applications, featuring 360 pulses per revolution and a wide voltage supply range of DC 5-24V. Its compact and lightweight design ensures easy installation, making it ideal for robotics, automation, and intelligent control systems.

Specifications

Manufacturer	Signswise
Part number	T-H-Parts-RE-003
Item Weight	141 g
Package Dimensions	10.11 x 8.1 x 7.19 cm; 141 g
Item model number	T-H-Parts-RE-003
Style	360 P/R
Material	Aluminum
Item Package Quantity	1
Batteries Included?	No
Batteries Required?	No

Have a Question? See What Others Asked

Hi i buy one of this encoder, but, the colors of the wires are red, black, white and green. some idea about the connections?

Does anyone have a datasheet for this? I need to know the arrangement of the screw holes.

is there a wire diagram for connection of the encoder to the ab 1400 plc?

What diameter do the threaded holes have?
